Compensator Design Tool

Features Compensator Design Tool

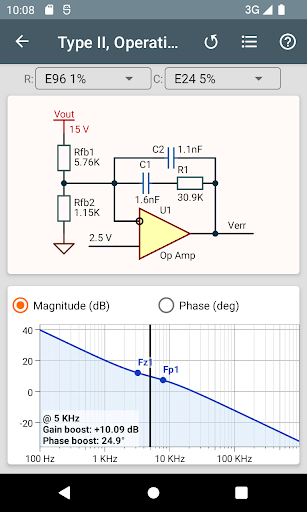

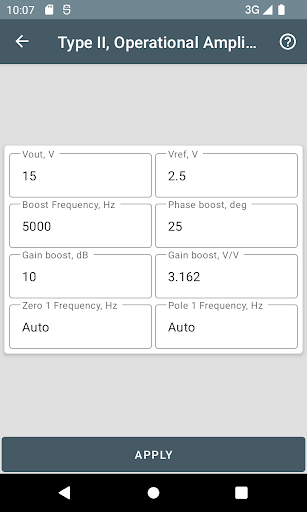

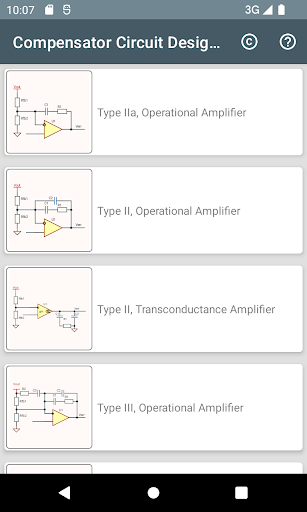

"Compensator Circuit Design Tool" helps engineers design compensators of non-isolated switching-mode power supplies.Ad-free.All the tools in this app are also included in the "Circuit Calculator" app:https://play.google.com/store/apps/details?id=com.vdv.circuitcalculatorSupported topologies:* Type I, Op Amp;* Type I, Transconductance Amplifier;* Type II and IIa, Op Amp;* Type II, Op Amp with optocoupler with and without fast lane;* Type II, Transconductance Amplifier;* Type II, Shunt regulator with optocoupler with and without fast lane;* Type III, Op Amp;* Type III, Transconductance Amplifier;* Type III, Shunt regulator with optocoupler with and without fast lane;
